Plumb-Bob perspective rectifier plugin for Vectorworks®

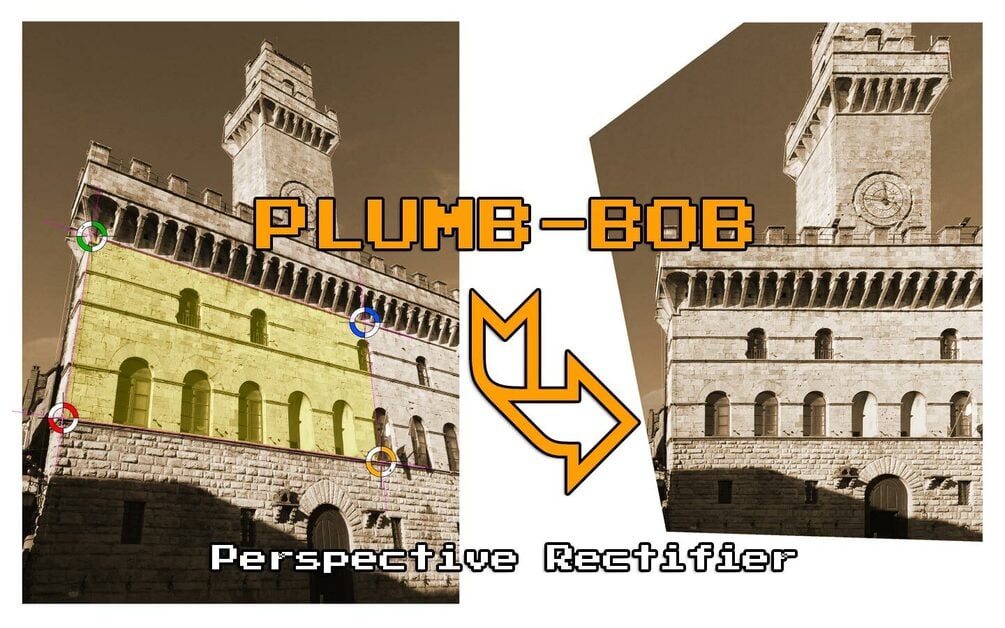

With Plumb-Bob you can transform a perspective picture in a plan view.
See official page here:
https://fitplot.it/vwplugins/PlumbBobPlugin.html
Installation…
1. Unpack the downloaded zip file
2. You'll get version folders suitable for your Vectorworks® version (PlumbBob 20YY where YY ranges from 20 to 23) containing these 5 elements:
- PlumbBob.vso
- Reverse 2D Objects.vsm
- Reverse Image.vsm
- Transform 2D Objects.vsm
- Transform Image.vsm
3. Move the “PlumbBob” folder (and its content) inside your Vectorworks Plug-ins folder (user folder).
4. Restart Vectorworks.
5. Edit your workspace adding the tool PlumbBob plugin (you'll find it in PlumbBob category).
6. Create a PlumbBob (or name it as you like) new menu item, then add to this the 4 menus you'll find under the PlumbBob category.
7. Save the modified workspace.
In the end you'll have a PlumbBob tool and one PlumbBob (or as you named it) menu with 4 submenus.
You'll get a .zip file containing plugins inside a folder. See installation instruction on the site.
